Engineered for absolute structural integrity and lifetime weather resistance.

Pre-Engineered Building Systems
Primary Structural Framing

Pre-Engineered Building (PEB) Systems

DRIKON designs, engineers, and manufactures industrial PEB structures that deliver exceptional spans, rapid construction speeds, and lower overall maintenance costs. Our systems are optimized to handle severe heavy dead loads, machinery vibrations, and local wind speeds.

Technical Specifications

Material Grade
ASTM A572 Grade 50 / IS 2062
Yield Strength
345 MPa / 50,000 PSI
Structural Protection
Double Epoxy Primer Red Oxide
Span Capability
Up to 90m Clear Span
External Cladding Profiles

Roofing Sheets

We manufacture vibrant, weather-resilient profiling sheets. Engineered for superior structural strength, durability, and corrosion resistance under severe monsoon and industrial environments.

Technical Specifications

Base Metal Coating
Galvalume AZ150 (Alu-Zinc)
Thickness Range
0.45 mm - 0.80 mm
Color Standard
Standard RAL Chart / Custom
Tensile Strength
550 MPa (G550)
Roofing Sheets
Insulated PUF Panels
Thermal Insulation Systems

Insulated PUF Panels

High thermal efficiency polyurethane foam (PUF) sandwich panels engineered to deliver outstanding insulation for cold storage, clean rooms, and temperature-sensitive facilities.

Technical Specifications

Core Material
Rigid Polyurethane Foam
Density
40 ± 2 Kg/m³
Panel Thickness
50 mm - 150 mm
Joint Type
Tongue & Groove Interlock
Skylights & Daylight Panels

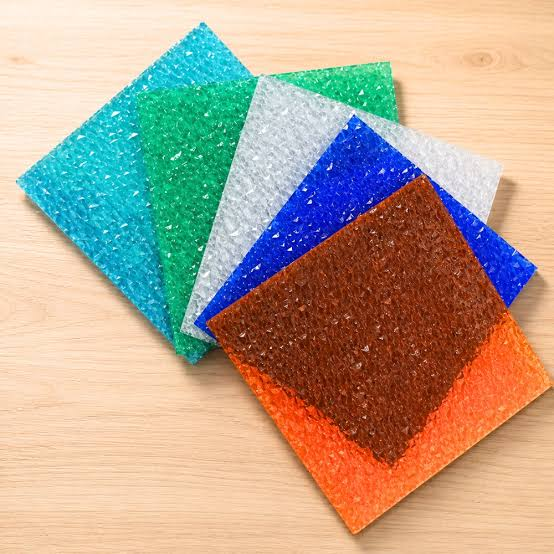

Polycarbonate Sheets

Our Polycarbonate Sheets combine exceptional transparency and strength, making them ideal for B2B applications that require both durability and natural light transmission. These high-impact, weather-resistant sheets are perfect for skylights, canopies, and architectural features, offering natural light without sacrificing structural integrity.

Technical Specifications

Core Performance
Durability & Clarity Combined
UV Protection
Coextruded UV Barrier Coat
Impact Resistance
250 Times Stronger than Glass
Daylight Pass
Up to 85% Light Transmission
Polycarbonate Sheets
Decking Sheet Systems
Composite Structural Slab

Decking Sheet Systems

Robust composite steel floor decking offering supreme load distribution, ease of concrete pouring, and high structural stability. Essential for rapid multi-storey construction.

Technical Specifications

Profile Depth
44 mm / 52 mm / 75 mm
Cover Width
980 mm / 1020 mm
Steel Material
High Tensile Galvanized G350
Thickness
0.80 mm - 1.20 mm
Secondary Steel Support

Structural C & Z Purlins

Cold roll-formed high-tensile galvanized steel purlins providing crucial secondary support for wall cladding and roofing sheets.

Technical Specifications

Zinc Coating
120 GSM - 275 GSM Galv
Base Metal Strength
345 MPa / G345
Thickness
1.50 mm - 3.00 mm
Pre-Punching
Pre-punched customized holes
C & Z Purlins
Air Ventilation Systems
Natural Air Environment

Air Ventilation Systems

Natural, electricity-free wind-driven roof turbine exhaust ventilators and ridge ventilators engineered to maintain fresh airflow and exhaust ambient heat from industrial work areas.

Technical Specifications

Vane Material
High Grade Aluminum Al.5052
Bearing Core
Double Sealed Stainless Steel
Size Diameter
21" / 24" / 30" Neck Size
Operating Cost
Zero Power Consumption
